Measure liquid and solid media in small to medium height containers under complex conditions.

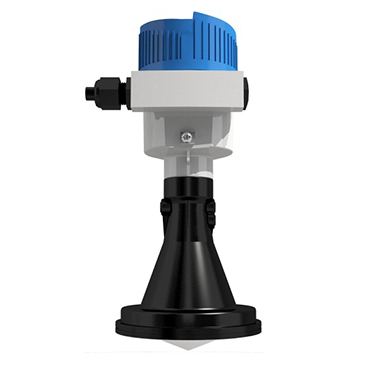

| AHL-6200A | |
| Application | Measure liquid and solid media in small to medium height containers under complex conditions. |
| Range | 15m |
| Temperature | -40……+150°C |
| Pressure | -1......+3bar -100......+300KPa |
| Measurement Accuracy | ±2mm |
| Frequency | 26GHz |
| Output | 4-20mA/HART, Profibus PA, Fundation Fieldbus Modbus-, Levelmaster-protocol |
| Antenna material | Fully plastic flared antenna//PP Plastic flared antenna/PVDF |
| Connection type/material | Hanger; flange connection; adaptive flange; sanitary aseptic connection |
| Safety Certification | ATEXJEC, FM, CSA, EAC(GOST), UKR Sepro, SIL2 |
