Solid material level measurement

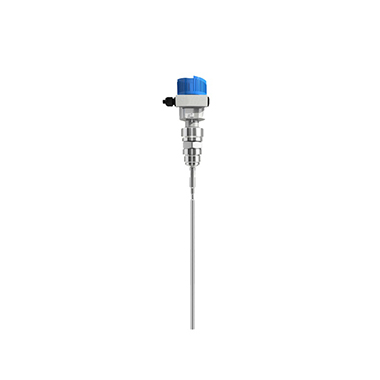

| AHL-6100B | |
| Application | Solid material level measurement |
| Range | Rod type: 4m (due to transportation) Cable type: up to 75 meters |
| Probe/material | Rod type, cable/SS 316L or Hastelloy |
| Connection type/material | Threads and flanges |
| Temperature | -60...+200°C |
| Pressure | -l...+40bar/-100...+4000kPa |
| Measurement Accuracy | ±5mm |
| Output | • 4...20mA/HART-two-wire system • 4...20mA/HART-four-wire system • Profibus PA • Foundation Fieldbus • Modbus-, Levelmaster-protocol |
| Safety Certification | • ATEX Explosion Permit • IEC Explosion Permit • Marine Permit • Spill Containment • FM • CSA • Gost |
