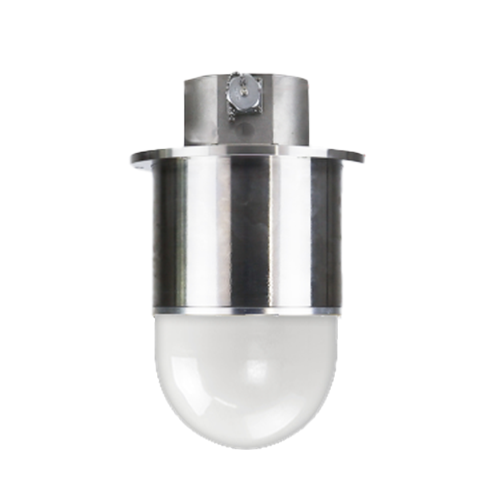

AHL-6300A

Transmission frequency

120GHZ~140GHZ

Material type

Particles, powders, and other bulk solids

measuring range

20M、50M、70M、120M

Communication methods

4-20mA/RS485/Ethernet/Fiber optic/4G/5G/Bluetooth

Protection level

IP67/IP68

ambient temperature

-40℃~80℃

working temperature

Conventional -40 ℃~80 ℃, can be equipped with cooling accessories

source

24VDC/220VAC

power

12W

Equipment weight

≤7KG

Number of point clouds

Greater than 300 points but less than 600 points

Scanning cycle

20s-2min

Beam angle

1.5°

Horizontal rotation angle range

0~360°

Horizontal step angle

1°(adjustable)

Pitch measurement angle

-90°~90  (settable)

Pitch step angle

1°(adjustable)

accuracy

Level measurement accuracy：±2mm

Volume accuracy：1%…5%

working pressure

0…1bar,customizable

Installation method

≥DN250 flange
